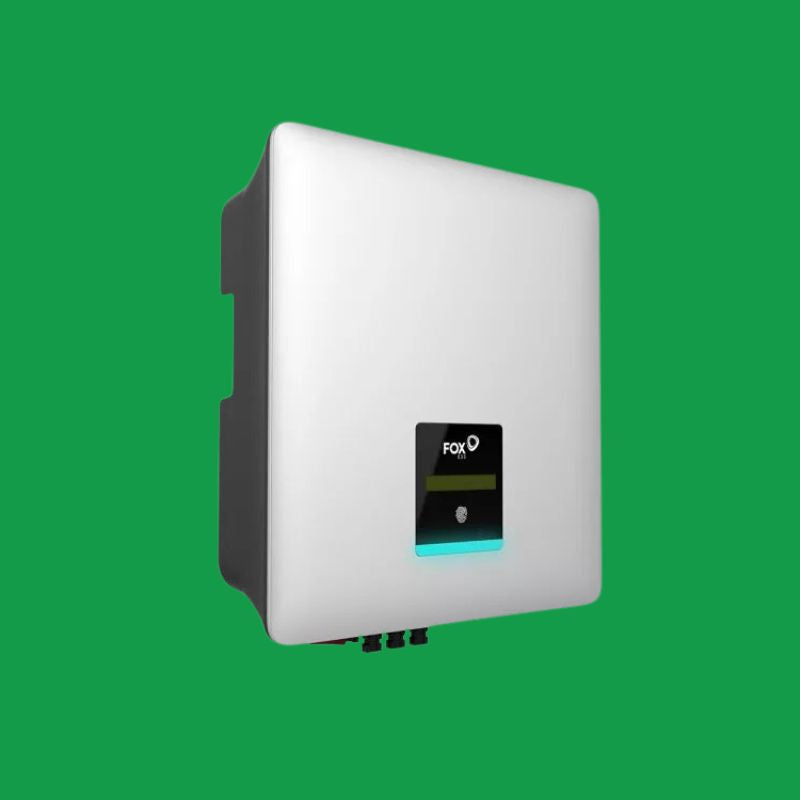

FOX Sting Inverter T-4 Series - 3 Phase - 4.0 Kw

Product Description:

The FOX G-Series 3 Phase 4.0 kW Inverter is designed to meet the demands of modern PV installations. Its three-phase output ensures balanced power across all phases, making it ideal for setups that need robust and reliable energy conversion. With advanced MPPT technology, the inverter maximises energy yield, while its IP65-rated enclosure ensures it can withstand harsh weather conditions, both indoors and outdoors.

This inverter offers versatile installation options, along with plug-and-play connectivity. It’s equipped with RS485, WiFi, and optional 4G monitoring, making it easy to keep track of energy production from anywhere. Built to meet the highest standards, the FOX G-Series offers reliable protection, from over voltage to anti islanding, ensuring a safe and stable energy output.

Specifications:

• Input (DC)

  • Max. PV Input Power: 6.0 kW
  • Max. Input Voltage: 600 V
  • MPPT Voltage Range: 120 – 550 V
  • No. of MPP Trackers: 2

• Output (AC)

  • Nominal Output Power: 4.0 kW
  • Max. Output Current (per phase): 6.4 A
  • Nominal Output Voltage: 230 V/400 V, 3-phase
  • Frequency: 50/60 Hz

• General

  • IP Rating: IP65
  • Operating Temperature: -25 to +60 °C
  • Efficiency: Up to 98.5%
  • Weight: 17 kg
  • Dimensions: 183 x 370 x 480 mm

Why Choose the FOX G-Series Inverter?

1. Superior Performance: With its high efficiency and dual MPPTs, you get maximum energy extraction and stable output.
2. Durable and Reliable: Designed for both indoor and outdoor installations, ensuring longevity and reliable performance.
3. Flexible Monitoring Options: Stay connected with app-based monitoring, giving you real-time access to system performance.
