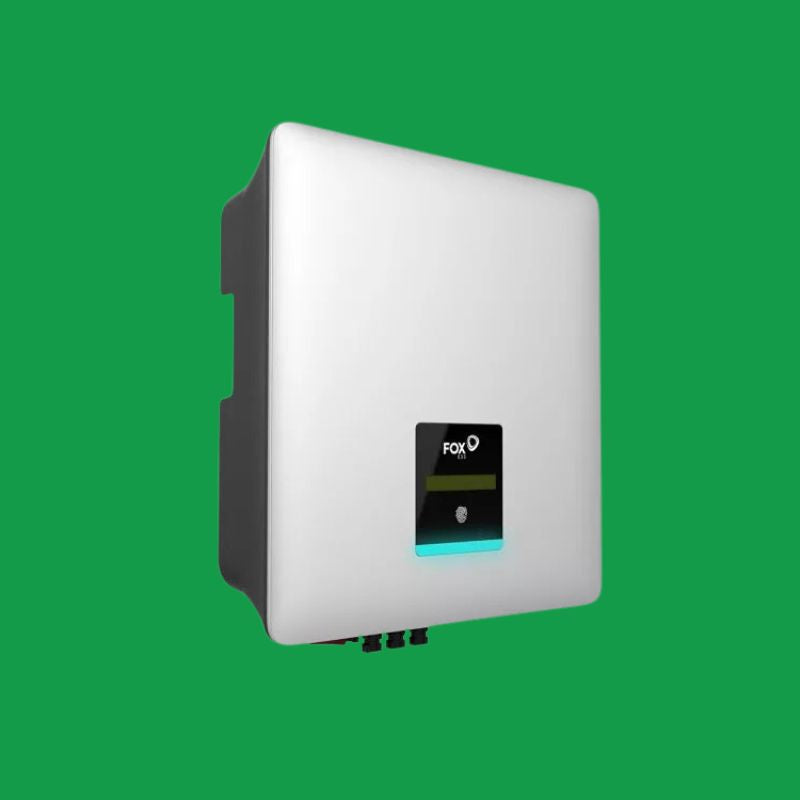

FOX Sting Inverter T-15 Series - 3 Phase - 15.0 Kw

Product Overview
The FOX ESS Sting 15.0 kW Inverter is a powerful three-phase string inverter designed for both residential and commercial solar systems. Engineered with high-performance capabilities, it maximises energy yield with two independent MPPT (Maximum Power Point Tracking) inputs, ensuring optimal efficiency even in varied sunlight conditions.

Key Features

• Three-Phase Output: Delivers stable, high-capacity AC output suitable for both small commercial and large residential installations.
• Dual MPPT: Optimises power generation by individually tracking two strings of solar panels.
• High Efficiency: Achieves up to 98.6% efficiency under ideal conditions, ensuring minimal power loss and maximum energy yield.
• Advanced Communication: Compatible with various smart monitoring systems, including RS485, WiFi, and optional 4G connectivity, for seamless integration with the FOX monitoring app and portal.
• Robust Protection: Equipped with comprehensive protective features such as AC/DC over voltage protection, anti-islanding, and short-circuit prevention.

• Specifications

  • Output Power: 15.0 kW (AC)
  • MPPT Inputs: 2
  • Max Efficiency: 98.6%
  • Weatherproof: IP65 rating, suitable for indoor or outdoor installation.
  • Dimensions: 600 x 560 x 225 mm
  • Weight: 52.5 kg

  Installation & Compatibility
  This inverter is optimized for systems with a maximum DC input of up to 22.5 kWp. Designed to operate efficiently under European weather conditions, it provides an impressive 97.8% European efficiency rating. The inverter also supports hybrid configurations, allowing for future upgrades with FOX ESS battery storage systems.
