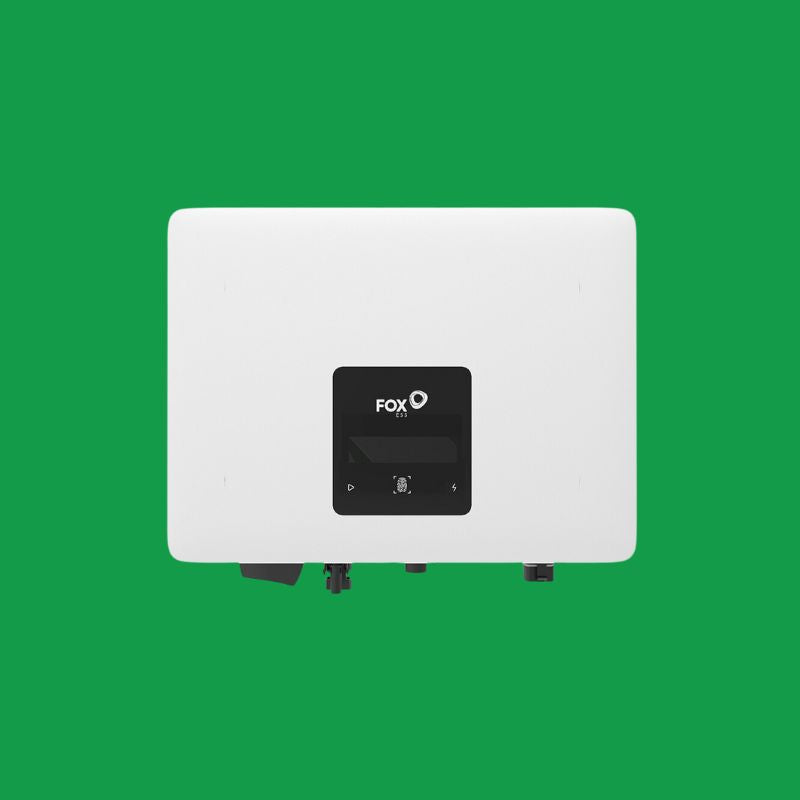

FOX S-Series 2000 - String Inverter - 1 MPPT

Overview
The FOX S-Series 2000 is a powerful and compact single-phase inverter that ensures optimal energy conversion for residential solar installations. With a single MPPT (Maximum Power Point Tracker) and an impressive 96.8% maximum efficiency, this inverter guarantees high performance in varying weather conditions. Ideal for smaller to medium-sized solar systems, it delivers consistent output, ensuring that every ray of sunlight is harnessed.

Key Features:

• Power Output: 2.0 kW (Max. 2.2 kW)
• MPPT Tracking: 1 MPPT for flexible string configurations
• Efficiency: Up to 96.8% peak efficiency for maximum power conversion
• Compact Design: Small footprint with a user-friendly interface
• Wi-Fi Connectivity: Easy remote monitoring through the FoxESS app
• IP65 Rating: Suitable for outdoor installation, resistant to dust and water
• Wide Temperature Range: Operates efficiently between -20°C and +60°C, with derating at +45°C
• Low Noise Operation: Less than 30 dB for quiet performance
• Easy Installation: Plug-and-play setup with clear guidance for installers

Technical Specifications:

• DC Side:
  • Maximum DC Input Power: 2.2 kW
  • Maximum DC Voltage: 500 V
  • Operating Voltage Range: 120-450 V
  • Start-up Voltage: 120 V
  • Max. Input Current: 12.5 A
• AC Side:
  • Rated AC Power: 2.0 kW
  • Maximum AC Output Power: 2.2 kW
  • AC Voltage: 220-240 V
  • Frequency: 50/60 Hz
  • Max. Output Current: 9.6 A
• Dimensions:
  • Length: 115 mm
  • Width: 334 mm
  • Height: 350 mm
  • Weight: 8 kg

Why Choose the FOX S-Series 2000 Inverter?

• Reliability: FOX ESS products are known for their durability and reliability, even in challenging environmental conditions. The S-Series inverters come with a robust build, ensuring long-term energy generation for years.
• Connectivity: With built-in Wi-Fi, the inverter allows for seamless remote monitoring and diagnostics, making it easy for installers and users to keep track of performance.
• Future-Proof: The system is upgradeable to integrate with FoxESS battery storage, providing scalability for future energy storage solutions.

Warranty:

• 5-year manufacturer warranty, extendable for added peace of mind.
