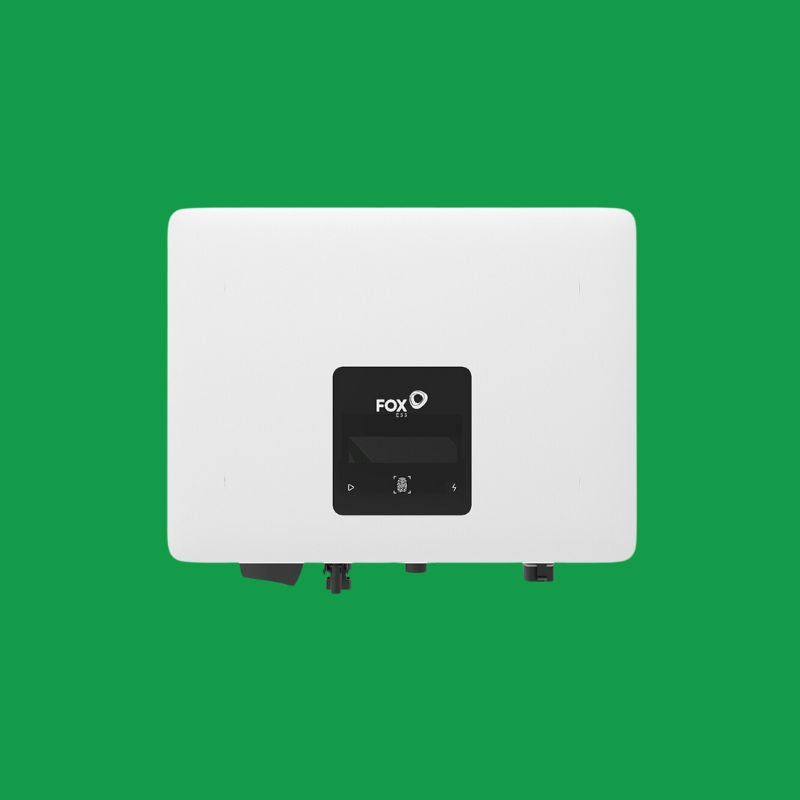

FOX S-Series 1000 - String Inverter - 1 MPPT

Sale price£217.00

VAT EXCLUDED

Trade reserved prices available. Register now or log in


Power up your residential or commercial solar system with the highly efficient FOX S-Series 1000. Designed for easy integration and long-term performance, this inverter offers a reliable solution for single-phase solar systems, delivering efficient energy conversion in a compact design.


Key Features:

  • High Performance: Up to 96.5% efficiency with a low startup voltage. Maximum power output of 1.0 kW with the flexibility to scale up.
  • Single MPPT: Optimised for maximum energy harvest with a single MPPT (Maximum Power Point Tracker).
  • IP65 Rated: Built for durability, it is waterproof and dust proof, making it suitable for both indoor and outdoor installations.
  • Remote Monitoring: Monitor your system’s performance from anywhere using the app or web portal (Wi-Fi/LAN module optional).
  • Compact Design: With dimensions of 115mm x 334mm x 350mm and weighing only 8 kg, this inverter is easy to install and space-efficient.
  • Wide Operating Range: Can operate in temperatures from -20°C to +60°C, offering versatility in various environments.
  • Noise-Free: Low operational noise (<30 dB), ensuring minimal disturbance in residential areas.

Technical Specifications:

  • Rated Power: 1.0 kW
  • Max Power: 1.1 kW
  • AC Voltage: 220/230/240 V
  • MPPT: 1
  • DC Input Voltage Range: 360 V - 500 V
  • Operating Temperature: -20°C to +60°C
  • Self-Consumption: <1 W (at night)
  • Dimensions: 115mm (L) x 334mm (W) x 350mm (H)
  • Weight: 8 kg

Product Benefits:

  • Plug and Play: Easy installation with flexible configuration options. Set up your system quickly with the user-friendly design.
  • Upgrade Path: Future-proof your investment by pairing with a Fox ESS charge controller for battery integration.
  • Low Maintenance: With natural cooling and minimal self-consumption, the system is low-maintenance, saving you time and money.

Warranty:

  • 5 years standard, extendable to 10 years with online registration.
