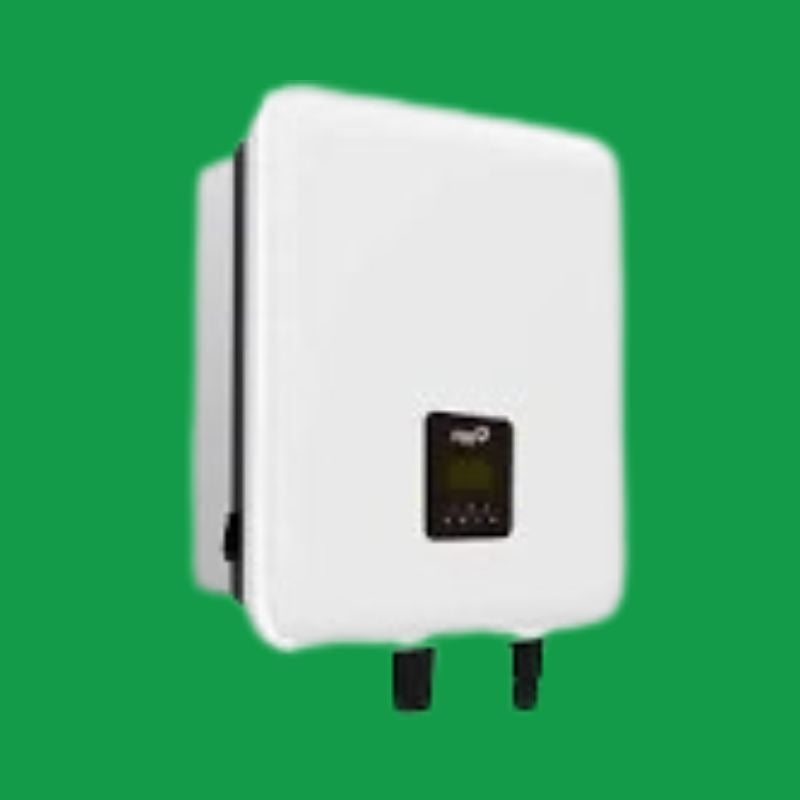

FOX Hybrid Inverter - KH-Series Single Phase H1 - 7.0kw with EPS

Description

The Fox ESS H1 7.0kW Hybrid Inverter is an advanced, single-phase inverter designed to optimise energy storage and usage for residential solar systems. With the unique ability to manage energy from both solar panels and battery storage, this inverter ensures efficiency and continuity of power even during grid outages.

Perfect for both new installations and system upgrades, the H1 Hybrid Inverter integrates seamlessly with high-voltage battery systems, including the Fox ECS line, delivering unmatched flexibility for expanding storage capacity.

Key Features:

• Maximum Power: 7.0kW single-phase hybrid inverter.
• EPS (Emergency Power Supply): Reliable backup power during outages, ensuring critical systems stay operational.
• Three MPPTs: Efficient energy harvesting with triple Maximum Power Point Tracking for optimised solar generation.
• High Efficiency: 97.8% maximum efficiency ensures superior energy management.
• Smart Monitoring: Equipped with the FoxESS Cloud platform, enabling real-time remote monitoring and control via a smartphone app or web portal.
• Outdoor Installation Ready: Rated IP65 for durability in outdoor environments.
• Natural Cooling: Passively cooled for silent operation with no need for additional fans.
• Dimensions & Weight: 450mm (W) x 527mm (H) x 208mm (D); weighs 29kg.

Why Choose the Fox ESS KH-Series Inverter?

• Flexible Configuration: Easily expand storage as needed, supporting various battery options with plug-and-play simplicity.
• Compatibility: Ideal for pairing with high-voltage lithium-ion battery systems, including the ECS2900, ECS4100, and ECS4800, offering versatility for any storage need.
• User-Friendly Installation: Simple, plug-and-play setup designed to minimise installation time and optimise configuration flexibility.

Included in the Box:

• Fox H1 7.0kW Hybrid Inverter
• CT Clamps and Meter for precise monitoring
• Quick Start Guide

Technical Specifications:

• Rated Power: 7.0kW
• Battery Compatibility: High-voltage (up to 8 modules with certain configurations)
• EPS Output: Automatic switchover during grid failures
• Cooling Method: Natural convection
• Ingress Protection: IP65 for outdoor and indoor use
