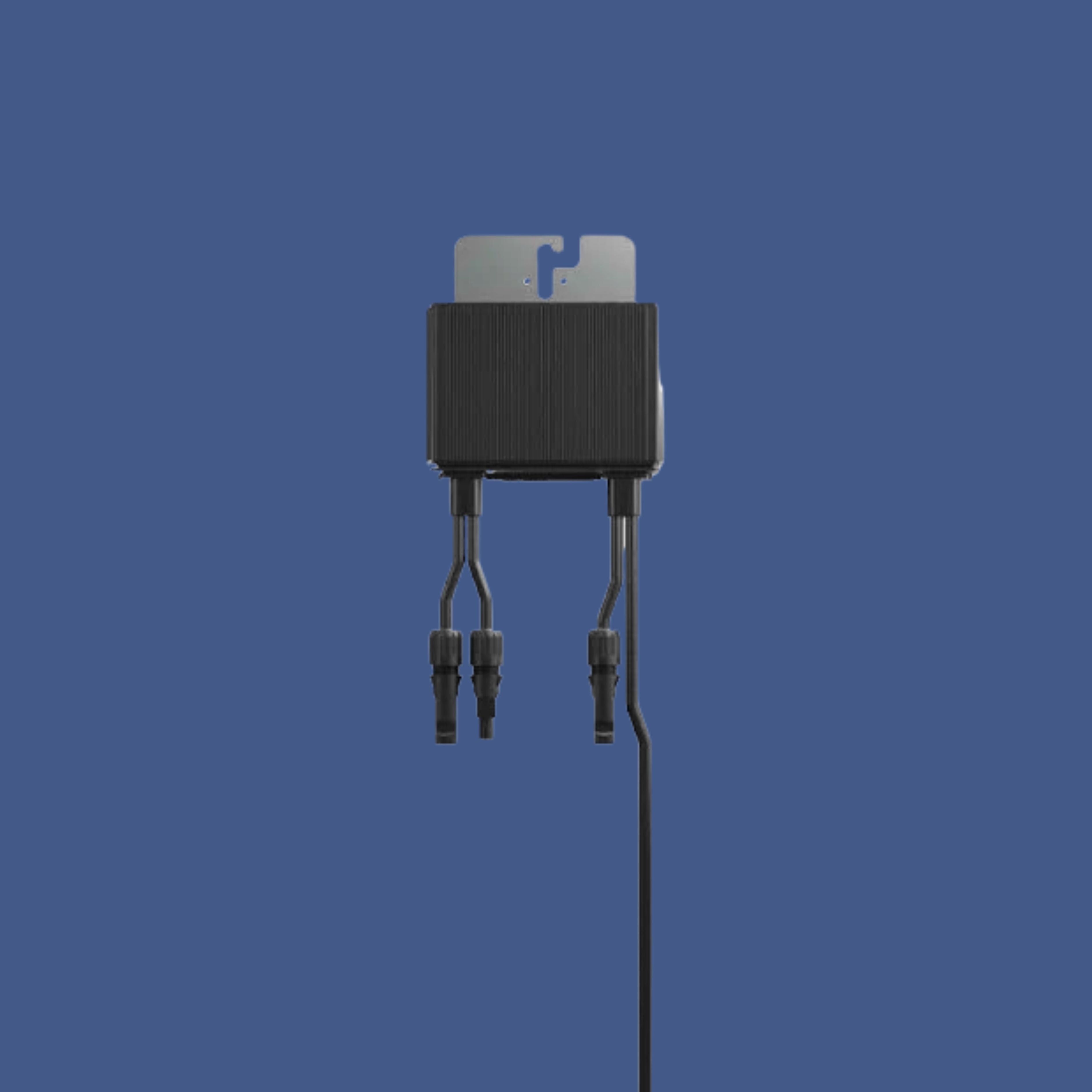

SolarEdge S1200 Commercial Optimiser - Extended

The SolarEdge S1200 Commercial Power Optimizer is a premium DC‑DC converter tailored for large-scale PV installations, handling two high-capacity or bifacial panels in series. Featuring module-level Maximum Power Point Tracking (MPPT), it maximizes system energy yield and eliminates losses from shading, soiling, mismatch, or aging—critical in rooftop, carport, and ground-mount arrays.

Built for safety and durability, the S1200 includes SafeDC™ shutdown to reduce DC voltage to <1 V during grid or inverter faults and Sense Connect™, continuously monitoring connectors to detect overheating or arcing before issues arise.

Its robust IP68/NEMA 6P enclosure and compatibility with harsh environments make it ideal for commercial use.

Technical Specifications

-Rated Input Power

1 200 W @ STC (also supports up to 1 300 W typical)

-Max Input Voltage (Voc)

125 V DC

-MPPT Operating Range

12.5–105 V DC

-Max Input Current (Isc)

15 A

-Max Output Current

Up to 20 A

-Efficiency

99.5 % peak / 98.8 % weighted

-Dimensions (HxWxD)

~165 × 129 × 52 mm

-Weight

1 064 g

-Input/Output Lead Lengths

+5.3 m / –0.1 m output, input lead 1.3–1.6 m

-Protection

IP68 / NEMA 6P; –40 °C to +85 °C operation

-Warranty

25 years

About SolarEdge

SolarEdge Technologies, established in 2006, pioneers intelligent energy solutions: inverters, storage, EV charging, and module-level electronics. Their S-Series optimizers, backed by a 25-year warranty, are engineered for performance, safety, and flexibility in commercial solar projects .
